CS595YX 1 OXY CLEAN STUB END : NJ9210A | Streaming Plumbing & Hardware

The NIBCO bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. The three-piece valve features solder end connections for easy installation. Options include NIB-SEAL insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125 Percent limited warranty.

Product Specification

Item #

NJ9210A

Dimensions

Additional product details

Vendor Item #

NJ9210A

Plumbing Category

Plumbing Supplies

Plumbing Subcategory

Valves

AltImageName1

/NBC/webimage-CS-595-YX.jpg

AltImageName2

/NBC/thul-CS-595-YX.jpg

AltImagePath1

/NBC-webimage-CS-595-YX.JPEG

AltImagePath2

/NBC-thul-CS-595-YX.JPEG

Bullet10

Cleaned and bagged for medical gas

Bullet11

Use in U.S. drinking water applications is prohibited after January 3, 2014

Bullet12

Conforms to MSS SP-110

Bullet13

Oxygen cleaning: Meets the requirements of NFPA99 and CGA Pamphlet G-4-1

Bullet5

Chrome plated brass ball, silicon bronze stem

Bullet6

Blowout-proof stem

Bullet7

Standard lever handle or locking lever, optional NIB-SEAL

Bullet8

Expanded cup end connection

Bullet9

Dezincification resistant

Country

USA

Description

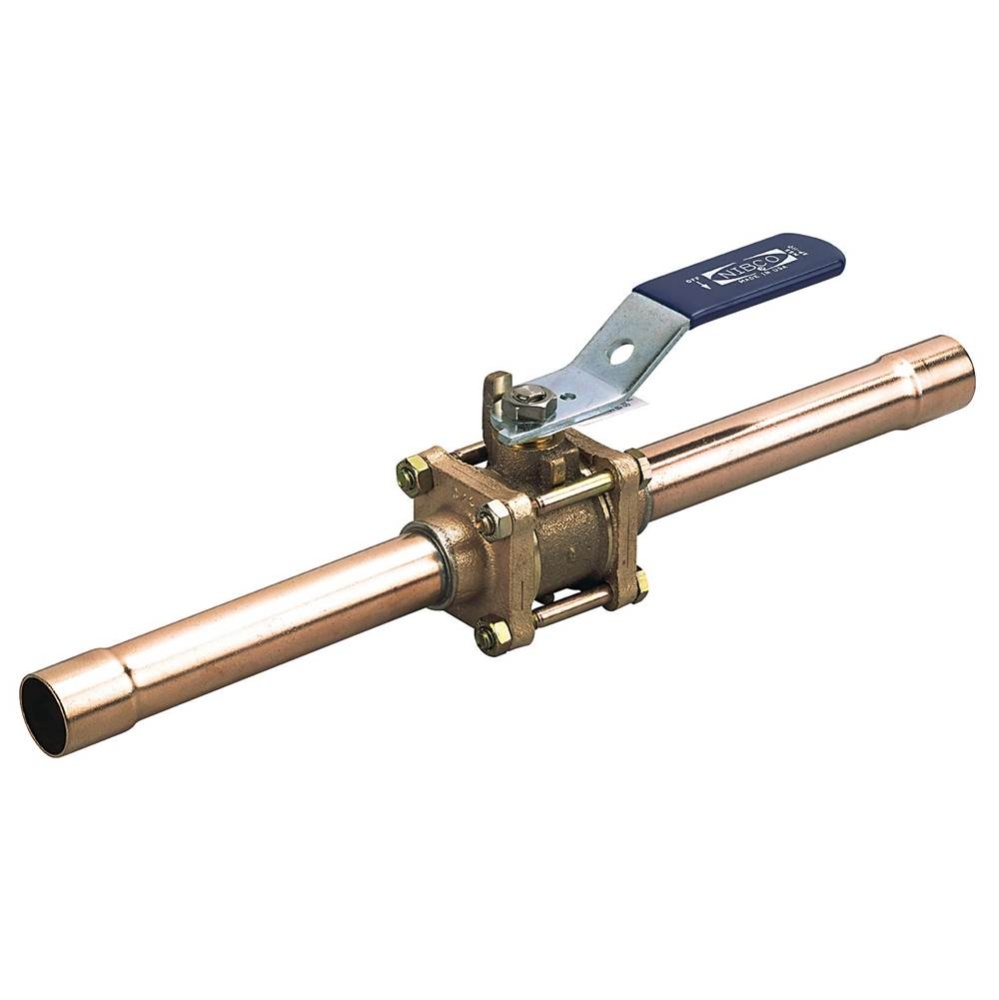

The NIBCO bronze ball valve provides bubble-tight shutoff at 600 PSI. The three-piece valve is ideal for medical gas applications. This valve is equipped with straight or extended stub ends for brazing in-line. It may be used for isolation and throttling (

Disclaimer

NIB-SEAL pecent is a registered trademark of NIBCO INC.

Height

2.52

Install Link

Installation Link

Length

13.83

MadeInUSA

Yes

Material

Bronze

Minimum Order Quantity

Prop65

This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Ship Weight

3.58

Shipping Height

3.19

Shipping Length

14.88

Shipping Width

5.25

Spec Sheet

UOM

Each

Weight

3.23

Width

4.09

Manufactured By

Nibco
